Stainless Steel Motors and Gearmotors

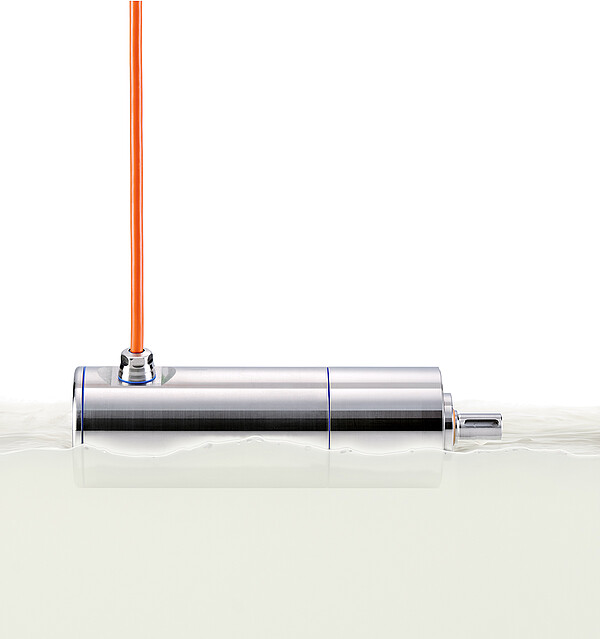

![[Translate to English:] Stainless-Steel Servo Motor with Gearbox](/fileadmin/_processed_/b/c/csm_GK-AntriebinMilchV06-1200px_06ca1542b0.jpg "[Translate to English:] Edelstahl-Servomotor")
Stainless Steel Servo Motors and Geared Motors in Hygienic Design
High standards have always been set for the production of food and pharmaceutical products to ensure reliable consumer protection. These standards must also be met by all production components used.
Since 2008, GEORGII KOBOLD has been developing and manufacturing stainless steel servo motors and geared motors in a hygienic design. This product line can be cleaned with aggressive and effective cleaning and disinfecting agents as well as high-pressure cleaners, enabling on-site cleaning (Clean In Place – CIP or Sterilization In Place – SIP).
![[Translate to English:] EHEDG](/fileadmin/_processed_/3/8/csm_georgii-kobold_mitglied-ehedg_5a2939b98b.png "[Translate to English:] EHEDG")
EHEDG Hygienic Design
In order to meet the continuously increasing requirements of the food industries in the future, the servomotors and planetary gears in hygienic design (HD) were developed in accordance with the EHEDG guidelines.
![[Translate to English:] Satinless-steel Servo Gear Motor](/fileadmin/_processed_/0/6/csm_GK-MilchAntr01CleanV3_1200p_1bf9ea52ea.jpg "[Translate to English:] Edelstahl-Servogetriebemotor")
Stainless Steel Servo Motors
- Stainless Steel Servomotors with standstill torque of 0.31 to 20Nm, peak torque 64Nm
- Stainless Steel Servo Gearmotors with planetary gears or bevel gears
- Housing in stainless-steel V2A 1.4301 (AISI 304) or V4A 1.4404 (AISI 316L) or anodized aluminum housing
- Face and flange mounting (IMB5, IMB14)
- Protection degree up to IP66K / IP69K for washdown conditions
- Large speed control range
- UL/CSA certification
- EHEDG Design
- Feedback with resolver or Hiperface, Endat oder DriveCliq encoder
- One cable technology (OCT)
- Brake options

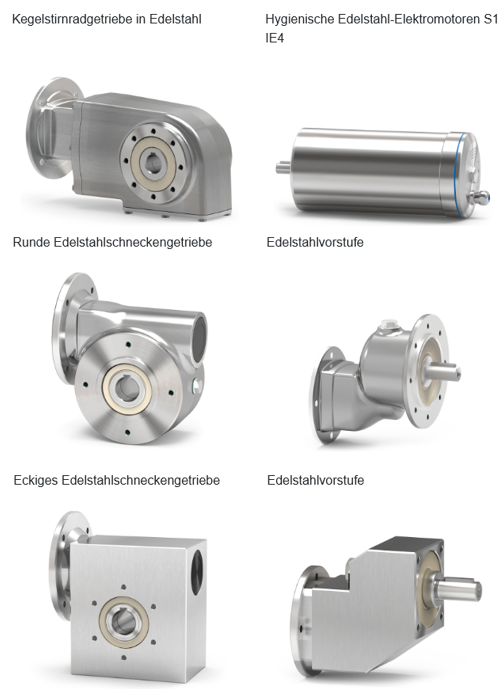

- AC-Servomotors, DC- Servomotors and AC asynchronous motors

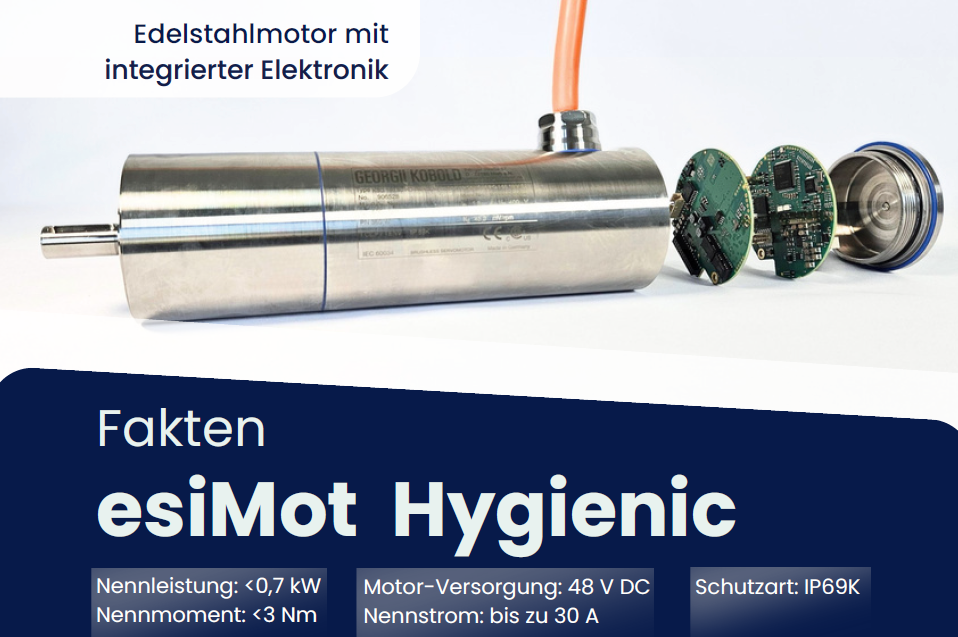

- Decentralized Servomotor with integrated servo controller
- Delivery with servo controller or frequency converter
- Custom designs
Technical Catalog for Stainless Steel Servo Motors and Gear Motors
- Stainless steel servo motors
- Gear motors with planetary gears
Our catalog includes extensive technical data for drives with resolvers, encoders, or brakes. 2D and 3D drawings are available at https://www.georgiikobold.de/en/service/cad-files/ .
Technical catalog for solo motors with B5 flange and information on the 1-cable solution
- Servomotors with B5 flange
- Information on the 1-cable solution
Our catalog contains extensive technical data for drives with resolvers, encoders or brakes. 2D and 3D drawings can be found at https://www.georgiikobold.de/informationen/cad-daten/.
2-stage planetary gearmotors in hygienic design
Stainless steel servo motor with integrated 2-stage planetary gearbox
- EHEDG Design
- Protection class IP69k
- Compact design
- Available with solid shaft, with and without keyway or block flange
Technical catalog for planetary geared motors (2-stage)
- Servo geared motors with 2-stage planetary gearboxes in hygienic design
Our catalog contains extensive technical data for drives with resolvers, encoders or brakes. 2D and 3D drawings can be found at https://www.georgiikobold.de/informationen/cad-daten/.
Bevel geared motors in hygienic design
Stainless steel servomotor with integrated angular gearbox
- EHEDG, 3A design
- Protection class IP69k
- Compact design
- Available with solid or hollow shaft
Technical catalog for bevel geared motors in Hygienic Design
- Bevel geared motors in hygienic design
Our catalog contains extensive technical data for drives with resolvers, encoders or brakes. 2D and 3D drawings can be found at https://www.georgiikobold.de/informationen/cad-daten/.

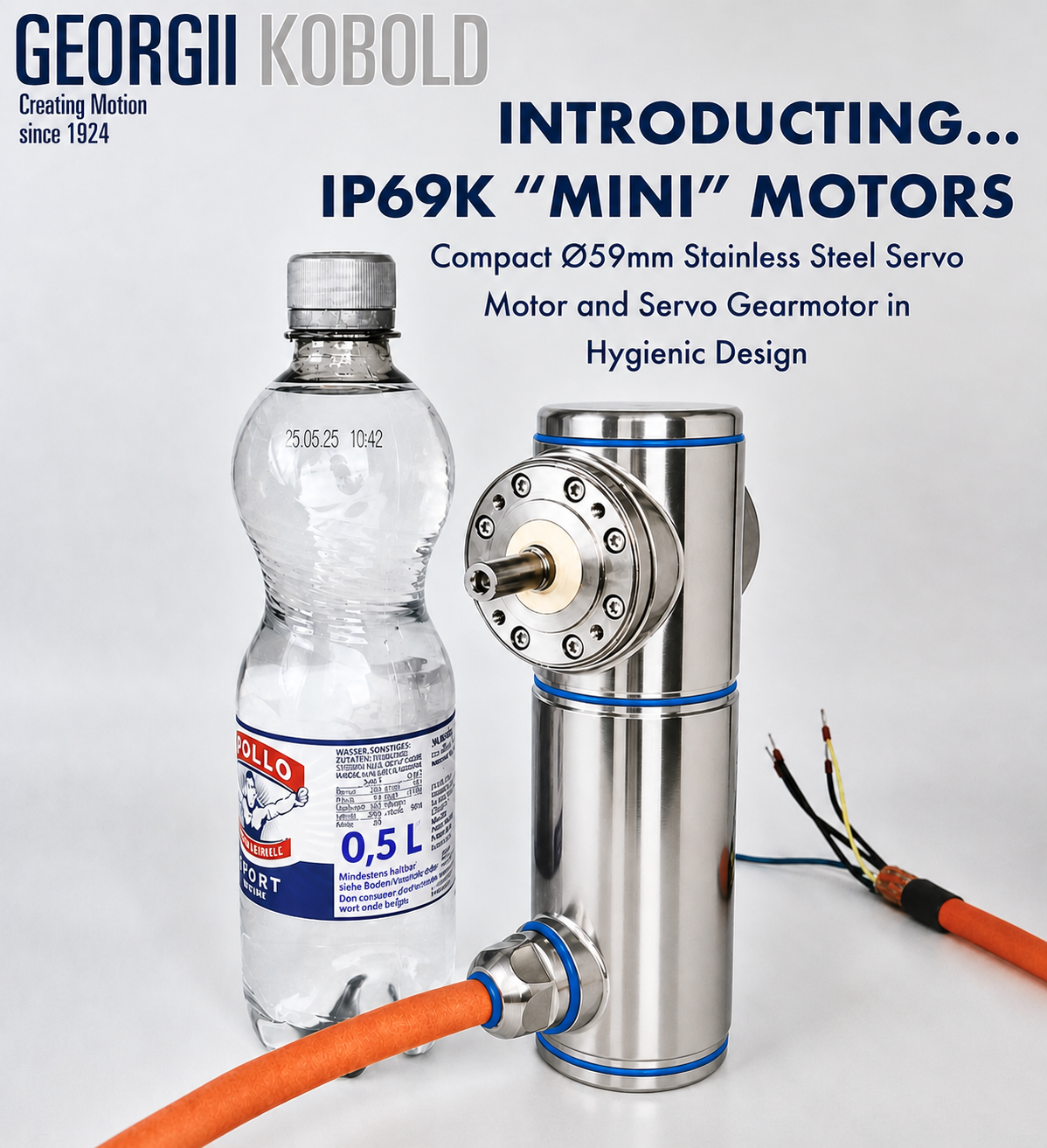

NEW - Compact Ø59mm Stainless-Steel Servomotor & Gearmotors in Hygienic Design
The new Ø59mm size was developed for applications in the food and pharmaceutical industries that allow only limited installation space. With this compact drive, GEORGII KOBOLD now offers stainless steel motors and gear motors with diameters ranging from Ø59mm to Ø150mm. All motor sizes can be delivered as compact gear motors with integrated planetary, bevel, or cycloid gears.
- Hygienic Design according to EHEDG guidelines
- Housing 316L, 1.4404
- Rated torgue: 0,16 - 0,59 Nm, Peak torque 0,7 - 2,7 Nm
- Compact Gearmotor with i= 3-10
- IP69k Protection Class
- Single-Cable Solution with Resolver or DSL Encoder System
For more information, see the following product description.
Technical catalog for actuators in 0 size in hygienic design
- 0 series solo motors in hygienic design (in preparation, please refer to the product description for the time being)
- 0 series planetary geared motors in hygienic design (in preparation, please refer to the product description for the time being)
- 0 series bevel geared motors in hygienic design (included in the main catalog)
Our catalog contains extensive technical data for drives with resolvers, encoders or brakes. 2D and 3D drawings can be found at https://www.georgiikobold.de/informationen/cad-daten/.
Hygienic Design Gear Motors with Cycloidal Gear
Stainless Steel Servo Motor with Integrated Cycloidal Gearbox for process-oriented, hygienic, and sterile automation. Ideal for Delta Robot Applications where high rigidity and precise positioning for pick & place solutions are required.
- Hygienic design according to EHEDG guidelines
- Outer diameter: Ø108 - Ø164mm
- Rated torque Mn: 20 - 300 Nm
- High overload safety with Factor: 5 - 7
- Gear Ratio i = 33 - 135
- Protection Class IP69k
- Gear clearance <1 arcminute
- Robust and low-wear
